AutoSeal

The AutoSeal hemostasis valve attached at interventional devices luer end is intended to maintain a seal around interventional device with an outer diameter < 0.10" (2.54mm) during interventional procedures.

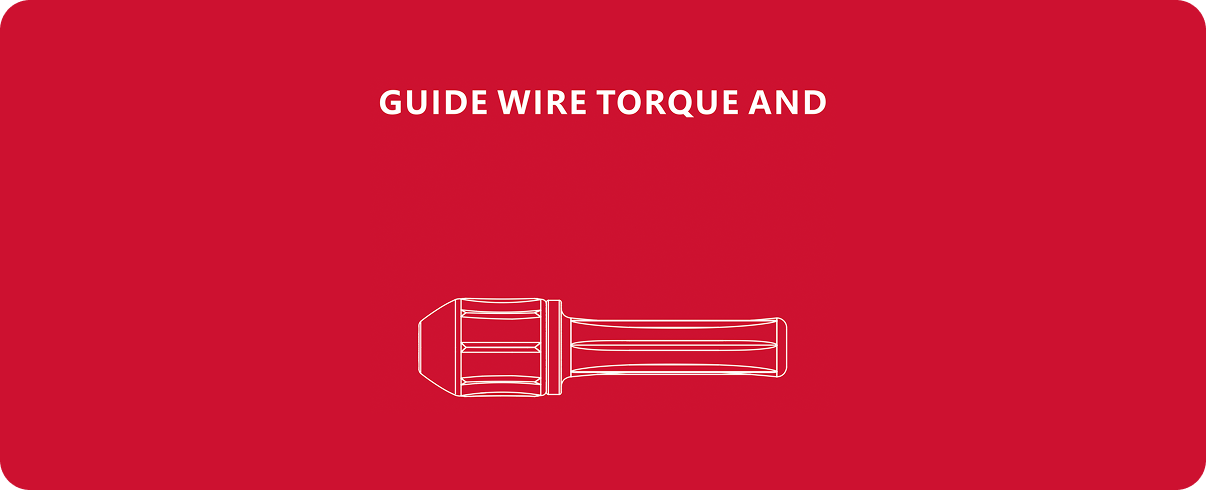

The guide wire torque provides an aid for steering the guide wire (OD between 0.010"and 0.018") within the vascular anatomy.

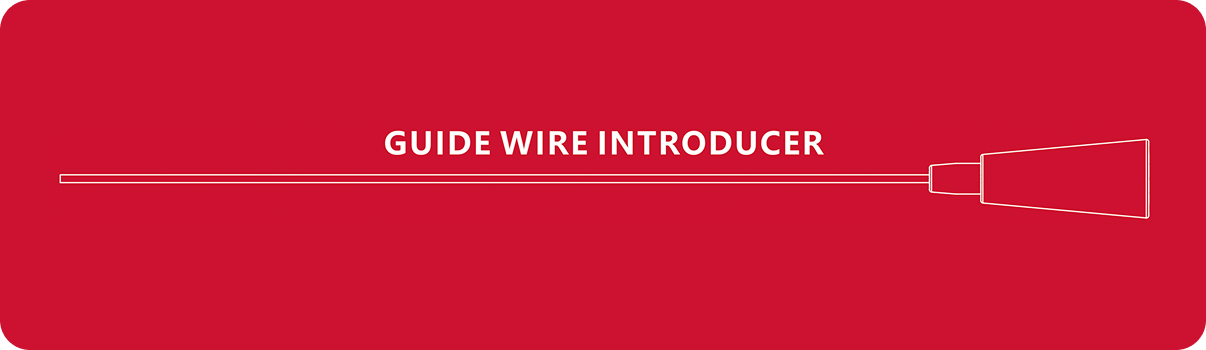

The guide wire introducer (20G,100mm) is used to introduce guide wire(OD between 0.010"and 0.018") into a vessel commonly known as a introducer needle.

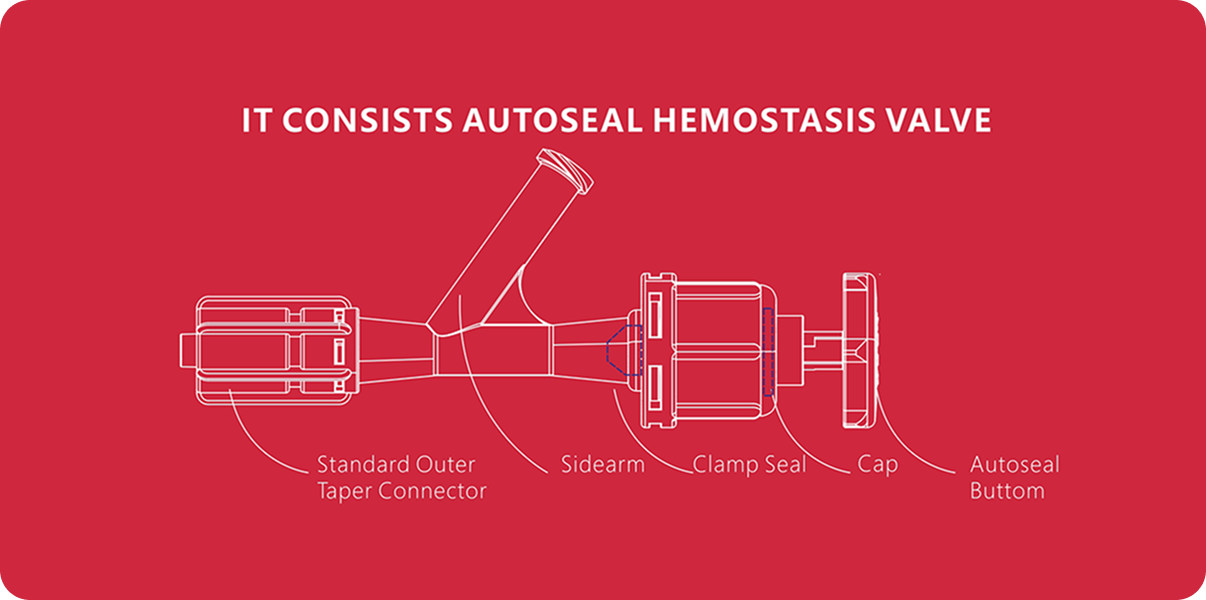

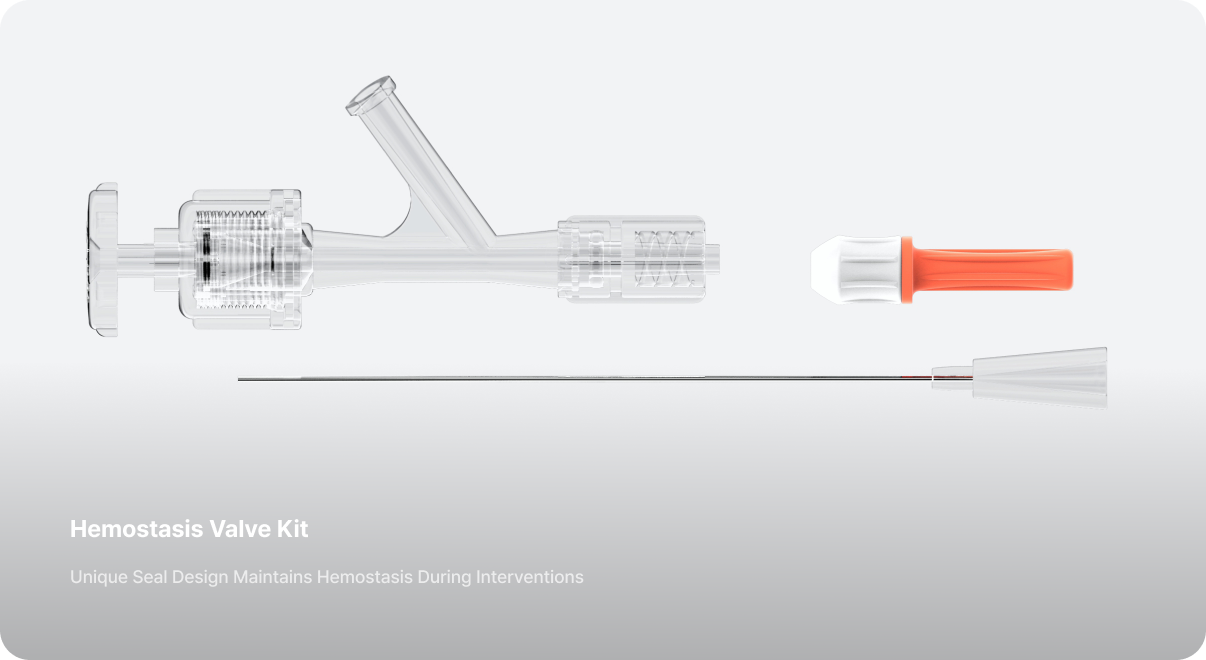

Each kit includes: a hemostasis valve; a guide wire torque and a guide wire introducer.
Order Number: 0109500
Shelf Life: 3 years

COMPANY	HEMOSTASIS VALVE	FEATURES
Curatia	AutoSeal	1. Seal Pressure 500psi 2. One hand Auto Seal operation 3. Dual Seals to prevent leak 4. Max bore size 0.100" (2.54 mm)
Merit	MBA Large BornDualSeal	1. Seal Pressure 50psi 2. One hand w.2 steps seal operation 3. Dual seals to prevent leak 4. Max bore size 0.087"(2.23 mm)
Elcam	Y-Click	1. Seal pressure 300 psi 2. One hand w.2 steps seal operation 3. Single seal to prevent leak 4. Max bore size 0.112"(2.87 mm)
Guidant	copilot	1. Seal Pressure 400 psi 2. One hand w.1 step seal operation 3. Dual seals to prevent leak 4. Max bore size 0.096" (2.44 mm)
