Ursa Plus

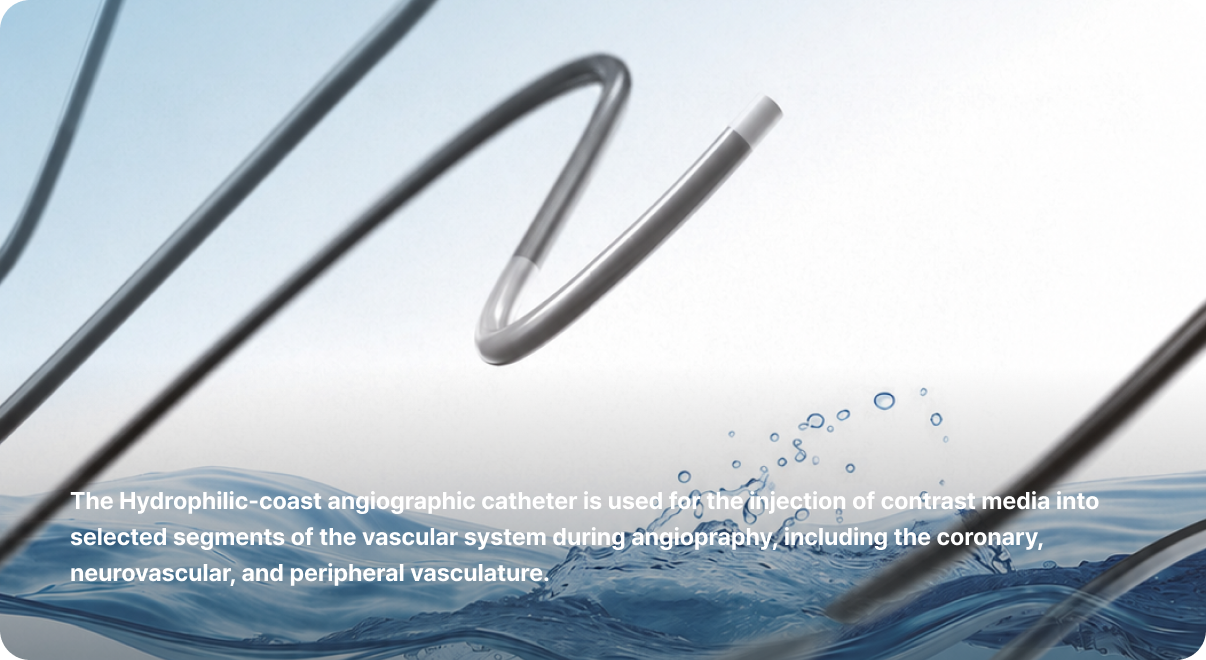

  • Ursa: A Brand Long Trusted in Leading Medical Centers Across the United States and Europe
  • Ursa Plus=Ursa+Specially Formulated Hydrophilic Coasting to Furture Reduce Push Resistance, Enabling Easier Acess to Tortuous Lesions
  • Stable 1:1 Instant Torque Control Facilitates Procedures Involving Steep Angles and Challenging Interventions
  • Thin-Wall, Large Lumen Design Ensures Contrast Flow for Clear Imaging
  • Radiopaque Soft Tip Enhances Procedural Visibility and Safety
HTSupreme HTSupreme HTSupreme

Ursa Plus: Comparison with Other Brands

Curatia Brand A Brand B Brand C
Ursa Plus
F Size 5, 6 5 5 5
Tip Shaps 91 17 40 17
Catheter length range (cm) 40–150 65-150 65-125 40-125
Distal coating length (cm) 16–60 14-40 20 25-40
Lumen ID (inch) 5F 0.047 0.046 0.047 0.046
Lumen ID (inch) 6F 0.057 N/A N/A N/A
Flow rate at Max psi
(cc/sec)		 5F 27.2 21.0 19.8 -
Flow rate at Max psi
(cc/sec)		 6F 42.5 - - -
Max injection
pressure limit		 5F 1200 1000 1200 -
Max injection
pressure limit		 6F 1200 - - -

Coronary Intervention Model

Catheter Tip Shape Sidehole Length 5F 6F
Radial Tig 1 100 5103P5RT0G1 5103P6RT0G1
Judkins Left 3.5 0 100 5103P5JLBG0 5103P6JLBG0
Judkins Left 4.0 0 100 5103P5JLCG0 5103P6JLCG0
Judkins Right 4.0 0 100 5103P5JRCG0 5103P6JRCG0
Pigtail 145° 8 110 5103P5PG4H8 5103P6PG4H8
8 125 5103P5PG4K8 5103P6PG4K8
Pigtail 155° 8 110 5103P6PG5H8 5103P6PG4H8
8 125 5103P5PG5K8 5103P6PG5K8

Peripheral Intervention Models

Catheter Tip Shape Sidehole Length 5F 6F
RH_Double-mesh 0 80 5103P5RHDE0 5103P6RHDE0
Cobra 1 0 80 5103P5CA1E0 5103P6CA1E0
Cobra – Small Adult (C2) 0 80 5103P5CA2E0 5103P6CA2E0
Cobra III (C3) 0 80 5103P5CA3E0 5103P6CA3E0
Davis 0 40 5103P5DA1A0 5103P6DA1A0
Mikaelsson Pulmonary 0 80 5103P5MK0E0 5103P6MK0E0
Renal (small) (RDC1) 0 65 5103P5RDCC0 5103P6RDCC0
0 80 5103P5RDCE0 5103P6RDCE0
RLG 0 100 5103P5RLGG0 5103P6RLGG0
RUC 0 90 5103P5RUCF0 5103P6RUCF0
Yashiro_Type 0 70 5103P5YATD0 5103P6YATD0

Neurointervention Models

Catheter Tip Shape Sidehole Length 5F 6F
Vertebral (VERT) 0 100 5103P5VETG0 5103P6VETG0
0 125 5103P5VETK0 5103P6VETK0
Simmons 1 0 100 5103P5SM1G0 5103P6SM1G0
0 125 5103P5SM1K0 5103P6SM1K0
Simmons 2 0 100 5103P5SM2G 5103P6SM2G
0 125 5103P5SM2K0 5103P6SM2K0
Headhunter 1 0 100 5103P5HH1G0 5103P6HH1G0
Headhunter 2 0 100 5103P5HH2G0 5103P6HH2G0
Headhunter 3 0 100 5103P5HH3G0 5103P6HH3G0
VTK 0 125 5103P5VTK0 5103P6VTK0
Hinck 0 100 5103P5HK0G0 5103P6HK0G0

General and Perfusion Intervention Models

Catheter Tip Shape Sidehole Length 5F 6F
Pigtail Straight 8 110 5103P5PGTH8 5103P6PGTH8
8 125 5103P5PGTK8 5103P56PGTK8
Multipurpose A-1 0 125 5103P5MA1K0 5103P6MA1K0
Multipurpose A-2 0 100 5103P5MA2G0 5103P6MA2G0
